ویژگی های دوربین اسپید دام تیاندی مدل TC-H326S
• حداکثر رزولوشن: 1920×1080@30fps
• حداقل رنگ روشنایی: 0.002Lux@F1.5
• بزرگنمایی نوری: 20x
• مادون قرمز هوشمند، دامنه مادون قرمز: 150 متر
• S+265/H.265/H.264/M-JPEG
• IP66

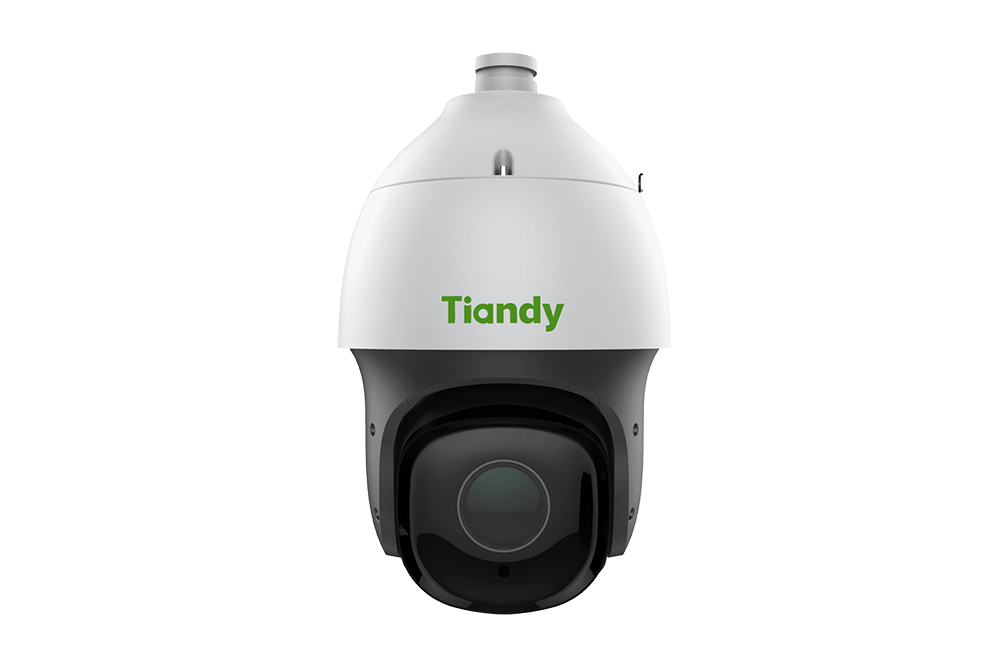

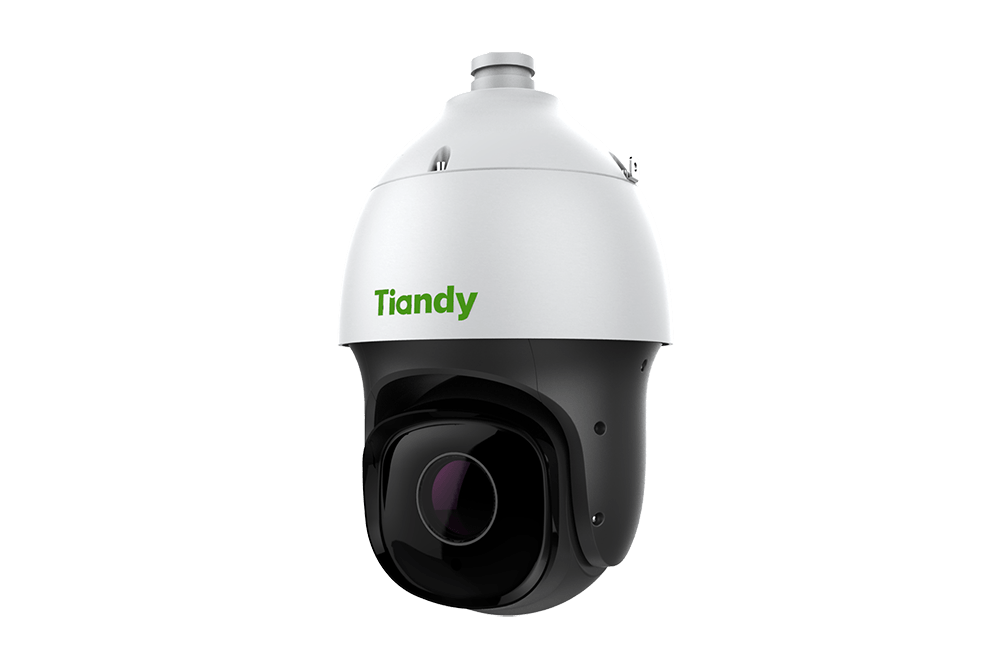

دوربین مداربسته اسپید دام تیاندی مدل TC-H326S
693,600,000 ﷼
توضیحات
دوربین اسپید دام تیاندی مدل TC-H326S، دارای بدنه فلزی و پلاستیکی است. حداکثر رزولوشن این دوربین مداربسته تیاندی 1920×1080@30fps می باشد. این دوربین دارای مادون قرمز با برد 150 متر است. حداقل رنگ روشنایی این دوربین 0.002Lux@F1.5 است. در شرایط آب و هوایی مختلف مقاوم بوده و دارای IP66 است. برای اطلاعات بیشتر می توانید دیتاشیت و مشخصات فنی دوربین را که در جدول زیر ذکر شده است، مطالعه نمایید. جهت استعلام قیمت و موجودی از دوربین TC-H326S تیاندی برای همکاری پروژه ای با کارشناسان فروش تماس بگیرید.
[/fusion_text]
دانلود دیتاشیت دوربین تیاندی مدل TC-H326S| a |
| Image Sensor 1/2.8″ CMOS |
| Signal System PAL/NTSC |
| Min. Illumination Color: 0.001lux@ (F1.5, AGC ON), BW: 0lux with IR |
| Shutter Time 1s to 1/100,000s |
| Day & Night Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range 140dB |
| Optical Zoom 33× |
| Digital Zoom 16× |
| Lens |
| Focal Length 4.6mm~152mm |
| Zoom Speed <4s |
| Angle of View Horizontal: 60.0° (w)~2.3° (t) Vertical: 34.4° (w)~1.5° (t) |
| Aperture Range F1.5~F4.0 |
| Pan&Tilt |
| Pan Range 360° |
| Pan Speed Pan Manual Speed: 0.1°~180°/s, Pan Preset Speed: 240°/s |
| Tilt Range -16°~90° (Auto flip) |
| Tilt Speed Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 180°/s |
| 3D Position Yes |
| Presets 500 |
| Preset Accuracy ±0.4° |
| Scan 8 |
| Cruise 16, up to 32 presets per cruise |
| Pattern 8, each with 600s memory or 1000 orders |
| Power-off Memory Yes |
| RS-485 Protocols DOME_PELCO_D, DOME_PELCO_P, DOME_PLUS |
| Illuminator |
| IR LEDs 10 |
| IR Range Up to 200m |
| IR Irradiation Angle Adjustable by Zoom |
| White LEDs N/A |
| Compression Standard |
| Video Compression S+265/H.265/H.264/M-JPEG |
| Video Bit Rate 32Kbps~16Mbps |
| Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Bit Rate 8K～ 48Kbps |
| Image |
| Max. Resolution 2.0MP (1920×1080) |
| Third Stream PAL: 25fps(1920×1080, 704×576, 704×288, 352×288) NTSC: 30fps(1920×1080, 704×480, 704×240, 352×240) |
| Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement BLC/3D DNR/HLC |
| ROI 7 Dynamic Areas for Both Main and Sub Stream, support auto-tracking ROI |
| OSD 16×16, 24×24,32×32, 48×48, 64×64, 96×96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions |
| Picture Overlay Yes |
| Privacy Mask Yes |
| Smart Defog Yes |
| PAL: 50fps (1920×1080, 1280×720, 704×576, 640×480) |
| NTSC: 60fps (1920×1080, 1280×720, 704×480, 640×480) |
| PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| NTSC: 30fps (704×480, 704×240, 640×360, 352×240) |
Main Stream
Sub Stream
* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at
the same time.
AVAILABLE MODEL
TC-H326S SPEC: 33X/I/E++/A
| Feature |
| Alarm Trigger Harsh Conflict Detection Voice Alarm, Motion Detection, Mask Alarm, Port Alarm,Network Disable Alarm, IP Conflict, MAC |
| Video Analytics Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Heatmap, Video Abnormal, Crowd, Audio Abnormal, Demographics(People Counting), On Duty Detection, Safety Helmet Detection, Auto tracking, Face Capture |
| Early Warning(EW) N/A |
| Auto-Tracking Yes |
| Face Detection and Analytics |
| Operating Mode Face capture, intelligent monitoring optional, default intelligent monitoring |
| Face Detection Performance Detects up to 16 faces at the same scene |
| Face Exposure Brightness Default 35, 1~100 brightness optional |
| Min. Face Pixel Default 80, 19~1920 optional |
| Precautionary Alert Three level |
| Network |
| Protocols |
| System Compatibility ONVIF (PROFILE S/T/G), SDK, CGI, P2P |
| ANR Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR) |
| Remote Connection 7 |
| Client Easy7, EasyLive |
| Web Version web6 |
| Interface |
| Communication Interface 1 RJ45 10M/100M self adaptive Ethernet port |
| Audio 1/1 |
| Alarm 8/2 |
| Speaker N/A |
| Reset Button Yes |
| On-board storage Built-in Micro SD card slot, up to 256 GB |
| RS-485 Yes |
| BNC Yes |
| Wiper N/A |
| General |
| Firmware Version – |
| Web Client Language 15 languages Simple Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese |
| Operating Conditions -40°C~70°C (IR OFF), -40°C~40°C (IR ON), 0-95%RH |
| Power Supply AC24V±25% / DC 24V±10% / POE++ |
| Power Consumption 22W(IR OFF), 44.2W(IR ON) |
| Protection IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
| Heater N/A |
| Dimensions Φ222x372mm(Φ |
| Weight 5.3kg(11.68lb) |
TC-326S
