| Image Sensor |
PTZ-bullet: 1/1.8″ CMOS
Speed dome: 1/1.8″ CMOS |
| Signal System |
PAL/NTSC |
| Min. Illumination |
PTZ-bullet:
Color: 0.0008Lux@ (F1.0, AGC ON), BW: 0lux with IR
Speed Dome:
Color: 0.0008Lux@ (F1.35, AGC ON), BW: 0lux with IR |
| Shutter Time |
1s to 1/100,000s |
| Day & Night |
Dual IR Cut Filter with Auto Switch |
| Wide Dynamic Range |
PTZ-bullet: 120dB; Speed Dome: 140dB |
| Optical Zoom |
Speed Dome: 6× |
| Digital Zoom |
PTZ-bullet: 16×; Speed Dome: 16× |
Lens
| Focal Length |
PTZ-bullet: 6mm; Speed Dome: 9~54mm |
| Zoom Speed |
<3s |
| Angle of View |
PTZ-bullet:
Horizontal: 56.9°, vertical: 31.9°
Speed Dome:
Horizontal: 42.3° (w)~32.1° (t), vertical: 24.3° (w)~18.4° (t) |
| Aperture Range |
PTZ-bullet: F1.0; Speed Dome: F1.35~F1.55 |
Pan&Tilt
| Pan Range |
PTZ-bullet: 260°; Speed Dome: 360° |
| Pan Speed |
PTZ-bullet:
Pan Manual Speed: 0.1°~100°/s, Pan Preset Speed: 100°/s
Speed Dome:
Pan Manual Speed: 0.1°~180°/s, Pan Preset Speed: 300°/s |
| Tilt Range |
PTZ-bullet: 0°~30°; Speed Dome: -3°~90° (Auto flip) |
| Tilt Speed |
PTZ-bullet:
Tilt Manual Speed: 0.1°~15°/s, Tilt Preset Speed: 15°/s
Speed Dome:
Tilt Manual Speed: 0.1°~100°/s, Tilt Preset Speed: 150°/s |
| 3D Position |
Yes |
| Presets |
PTZ-bullet: 256; Speed Dome: 500 |
| Preset Accuracy |
±0.5° |
| Scan |
Speed Dome: 8 |
| Cruise |
Speed Dome: 16, up to 32 presets per cruise |
| Pattern |
Speed Dome: 8, each with 600s memory or 1000 orders |
| Power-off Memory |
Yes |
| RS-485 Protocols |
DOME_PELCO_D， DOME_PELCO_P， DOME_PLUS |
Illuminator
| IR LEDs |
6 |
| IR Range |
Up to 100m |
| IR Irradiation Angle |
Adjustable by Zoom |
| White LEDs |
4, up to 30m |
| Blue&Red Flash LEDs |
Yes |
Compression Standard
| Video Compression |
S+265/H.265/H.264/M-JPEG |
| Video Bit Rate |
32Kbps~8Mbps |
| Audio Compression |
G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Bit Rate |
8K～ 48Kbps |
| Max. Resolution |
5.0MP (3072×1728) |
| Main Stream |
PAL: 20fps (3072×1728), 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720, 640×480, 704×576) |
| Sub Stream |
PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| Third Stream |
PAL: 25fps (704×576, 704×288, 352×288)
NTSC: 30fps (704×576, 704×288, 352×288) |
| Image Setting |
Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| Image Enhancement |
BLC/3D DNR/HLC |
| ROI |
7 Dynamic Areas for Both Main and Sub Stream |
| OSD |
16×16, 24×24,32×32, 48×48, 64×64, 96×96, 128×128, adaptable size, letters such as Week, Date, Time,
Total 5 Regions |
| Picture Overlay |
Yes |
| Privacy Mask |
Yes |
| Smart Defog |
Yes |
| NTSC: 20fps (3072×1728), 30fps (2560×1440, 2304×1296, 1920×1080, 1280×720, 640×480, 704×480) |
| NTSC: 30fps (704×576, 704×288, 640×360, 352×288) |
Feature
| Alarm Trigger |
Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict,
MAC Address Conflict, FTP Server Exception |
| Video Analytics |
Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Heatmap,
Video Abnormal, Crowd, Audio Abnormal, Demographics(People Counting), On Duty Detection,
Safety Helmet Detection, Auto tracking, Face Capture |
| Video Structure Analytics |
Face metadata: age, gender, glasses, beards, masks, hat
Human body metadata: gender, masks, hair, bag, tops, tops color, bottoms, bottoms color
Vehicle metadata: type, color, brand
Non-vehicle metadata: type |
| Early Warning(EW) |
Yes |
| Auto-Tracking |
Yes |
Face Detection and Analytics
| Face Detection Performance |
Detects up to 32 faces at the same scene |
| Face Exposure Brightness |
Default 35, 1~100 brightness optional |
| Min. Face Pixel |
Default 60, 26~2560 optional |
Network
| Protocols |
802.1X/TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/RTP/RTSP/IPv4/IPv6/
SNMP/SMTP/RTMP |
| System Compatibility |
ONVIF (PROFILE S/T/G), SDK, CGI, P2P |
| ANR |
Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed
connection (Only Support Tiandy ANR NVR) |
| Remote Connection |
7 |
| Client |
Easy7, EasyLive |
| Web Version |
web6 |
* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at
the same time.
AVAILABLE MODEL
TC-A35555 SPEC: 0/A/6MM/9-54MM
Interface
| Communication Interface |
1 RJ45 100M/1000M self adaptive Ethernet port |
| Audio |
2 Mic, 1/1 |
| Alarm |
1/1 |
| Speaker |
2 |
| Reset Button |
Yes |
| On-board storage |
Built-in Micro SD card slot, up to 512 GB |
| RS-485 |
Yes |
| BNC |
N/A |
| Wiper |
N/A |
| Electronic Compass |
Yes |
| GPS/BDS |
N/A |
General
| Firmware Version |
– |
| Web Client Language |
15 languages
Simplified Chinese, Traditional Chinese, English, Spanish, Korean, Italian, Turkish, Russian, Thai, French,
Polish, Dutch, Hebraism, Arabic, Vietnamese |
| Operating Conditions |
-40°C~70°C, 0-95%RH |
| Power Supply |
AC24V±15%, DC24V±10% |
| Power Consumption |
Max: 55W |
| Protection |
IP66, Lightning |

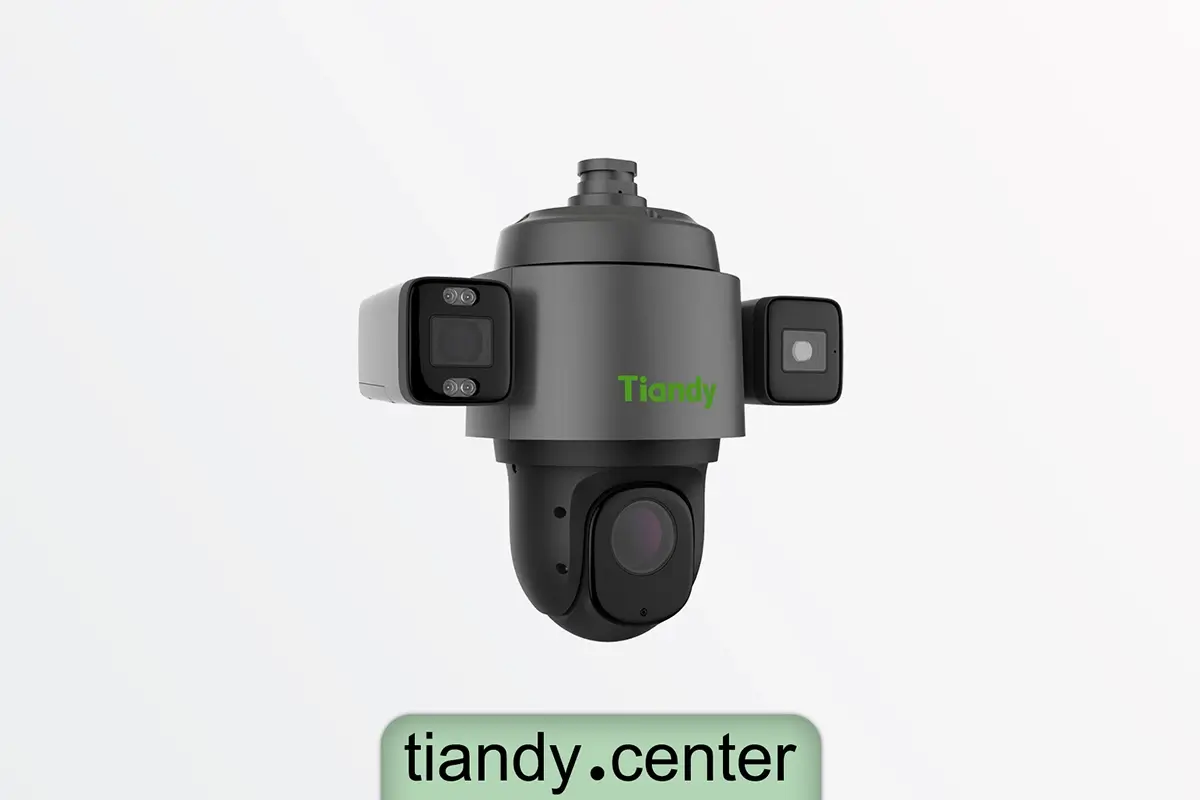

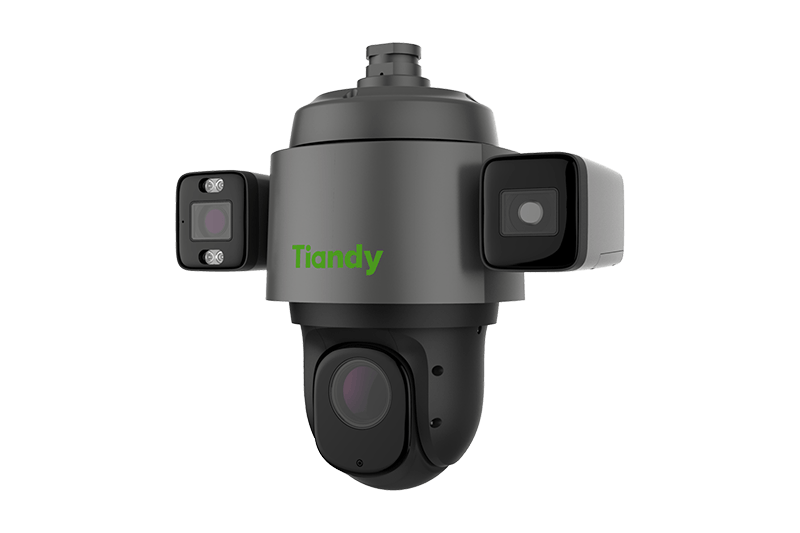

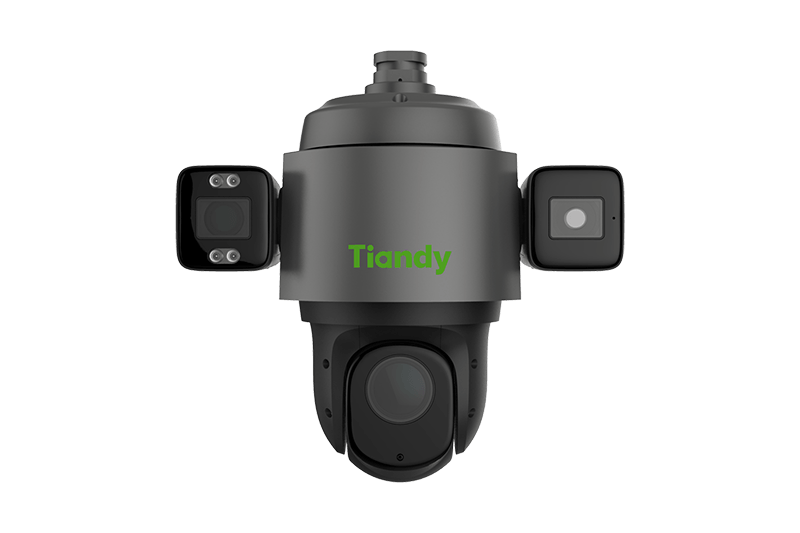

TC-A35555
