ynamic Range |
Digital WDR |
Angle Adjustment |
pan 0~340°, tilt 0~75°, roate 0~360° |
Lens Type |
Fixed |
Focus |
2.8mm |
Lens Mount |
M12 |
Aperture |
F2.0, Fixed |
FOV |
Horizontal field of view: 97.4° |
IR LEDs |
1 |
IR Range |
Up to 30m |
Wavelength |
850nm |
White LEDs |
N/A |
Video Compression |
S+265/H.265/H.264 |
Video Bit Rate |
32 Kbps to 6 Mbps |
Audio Compression |
N/A |
Audio Bit Rate |
N/A |
Max. Resolution |
1920×1080 |
PAL: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480) |
Main Stream |
NTSC: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480) |
PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
Sub Stream |
NTSC: 30fps (704×480, 704×240, 640×360, 352×240) |
Third Stream |
N/A |
Image Setting |
Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
Image Enhancement |
BLC/3D DNR/HLC |
ROI |
N/A |
OSD |
16×16, 32×32, 48×48, adaptable size, Letters Such as Week, Date, Time, Total 1 Regions |
Picture Overlay |
N/A |
Privace Mask |
Yes |
Smart Defog |
Yes |
Alarm Trigger |
Motion Detection/IP Conflict/MAC Conflict/Mask Alarm |
Video Analytics |
N/A |
Image |
Camera |
Lens |
Illuminator |
Compression Standard |
Feature |
* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at
the same time.
AVAILABLE MODEL
TC-C34HN SPEC: I3/E/C/M/2.8MM
Early Warning(EW) |
N/A |
Intelligent Coding |
Yes |
Intelligent Image |
Yes |
Intelligent Alarm |
Yes |
Network Storage |
N/A |
System Compatibility |
ONVIF (PROFILE S), SDK, P2P |
Remote Connection |
≤7 |
Client |
Easy7, EasyLive |
Web Version |
Web5 |
Communication Interface |
1 RJ45 10M/ 100M self adaptive Ethernet port |
Audio I/O |
N/A |
Alarm I/O |
N/A |
Reset Button |
N/A |
On-board storage |
N/A |
Firmware Version |
NVSS_V13.2.1.20190612_SP1 |
Web Client Language |
11 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai,
French, Polish |
Operating Conditions |
-35℃~ 65℃, 0~ 95% RH |
Power Supply |
DC 12V±20%, PoE (802.3af) |
Power Consumption |
MAX: 5W(12V) MAX: 6W(POE) |
Protection |
IP66 |
Heater |
N/A |
Dimensions |
Φ117×96 mm (Φ4.61×3.78 inch) |
Weight |
0.45kg (0.99lb) |

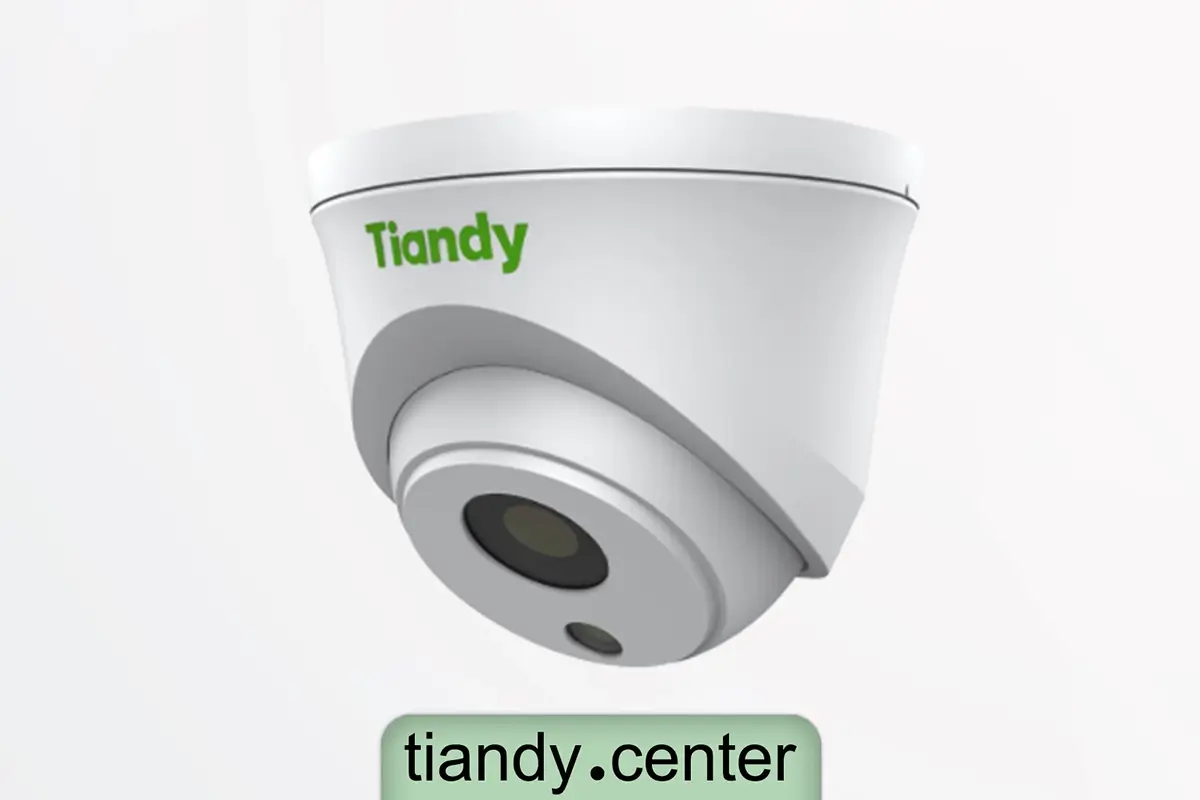

TC-C34HN
