Shutter Time |
1s to 1/100,000s |
Day & Night |
Dual IR Cut Filter with Auto Switch |
Wide Dynamic Range |
120dB |
Angle Adjustment |
pan 0~330°, tilt 0~75°, roate 0~350° |
Lens |
Lens Type |
Motorized |
Focus |
2.7-13.5mm |
Lens Mount |
14 |
Aperture |
F1.6~F3.3 |
FOV |
Horizontal field of view: 105.6°~29° |
Illuminator |
IR LEDs |
18 |
IR Range |
Up to 30m |
Wavelength |
850nm |
White LEDs/Warmlights |
N/A |
Compression Standard |
Video Compression |
S+265/H.265/H.264 |
Video Bit Rate |
32Kbps~6Mbps |
Audio Compression |
G.711/G.711U/ADPCM |
Audio Bit Rate |
8K~48Kbps |
Image |
Max. Resolution |
2592×1944 |
Main Stream |
PAL: 20fps(2592×1944), 25fps(2592×1520,2560×1440,2304×1296,1920×1080,1280×720) |
Sub Stream |
PAL: 25fps(704×576, 704×288, 640×360, 352×288) |
Third Stream |
N/A |
Image Setting |
Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
Image Enhancement |
BLC/3D DNR/HLC |
ROI |
Support 8 fixed regions of coding |
OSD |
16 16, 32 32, 48 48, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions |
Picture Overlay |
N/A |
Privacy Mask |
Yes, 4 regions |
Smart Defog |
Yes |
Feature |
Alarm Trigger |
Motion Detection, Mask Alarm, IP Address Conflict |
Video Analytics |
Tripwire, Perimeter |
Early Warning(EW) |
N/A |
NTSC: 20fps (2592×1944), 24fps(2592×1520, 2560×1440), 30fps(2304×1296, 1920×1080, 1280×720) |
NTSC: 30fps(704×480, 704×240, 640×360, 352×240) |
* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at
the same time.
AVAILABLE MODEL
TC-C35MS SPEC: I3/A/E/M/C/
H/2.7-13.5MM-VJO
Network
ANR |
Protocols |
TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, IPV4, NTP, UDP, ICMP, RTP, RTSP, UPnP |
System Compatibility |
ONVIF (PROFILE S/T/G), SDK, CGI (IE), P2P(Mutually exclusive with Profile G) |
Remote Connection
Client |
7 |
Easy7, EasyLive Plus |
Web Version |
Web6 |
Interface |
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port |
Audio I/O |
Alarm I/O |
Reset Button Yes |
On-board storage SD card slot, up to 512 GB |
General |
Firmware Version – |
Web Client Language
17 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French,
Polish, Dutch, Hebraism, Arabic, Vietnamese, German, Ukrainian |
Operating Conditions -35 ~ 60 , 0~ 95% RH |
Power Supply DC 12V±25%, PoE (802.3af) |
Power Consumption MAX: 6W (12V) MAX: 8W (PoE) |
Protection IP66 IK10, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
Heater N/A |
Dimensions 143 124mm ( 5.63 4.88inch) |

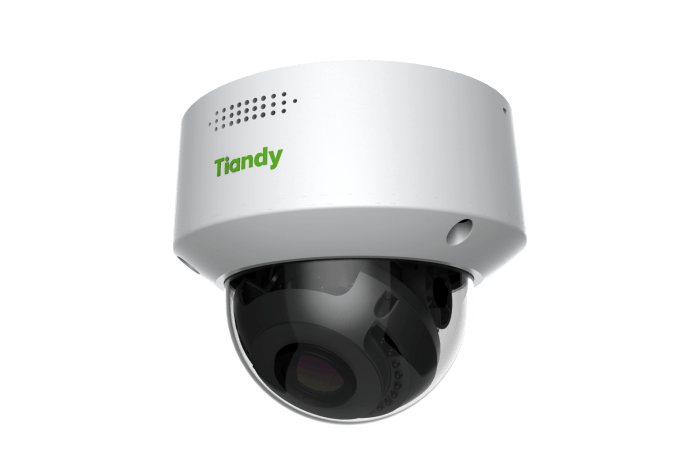

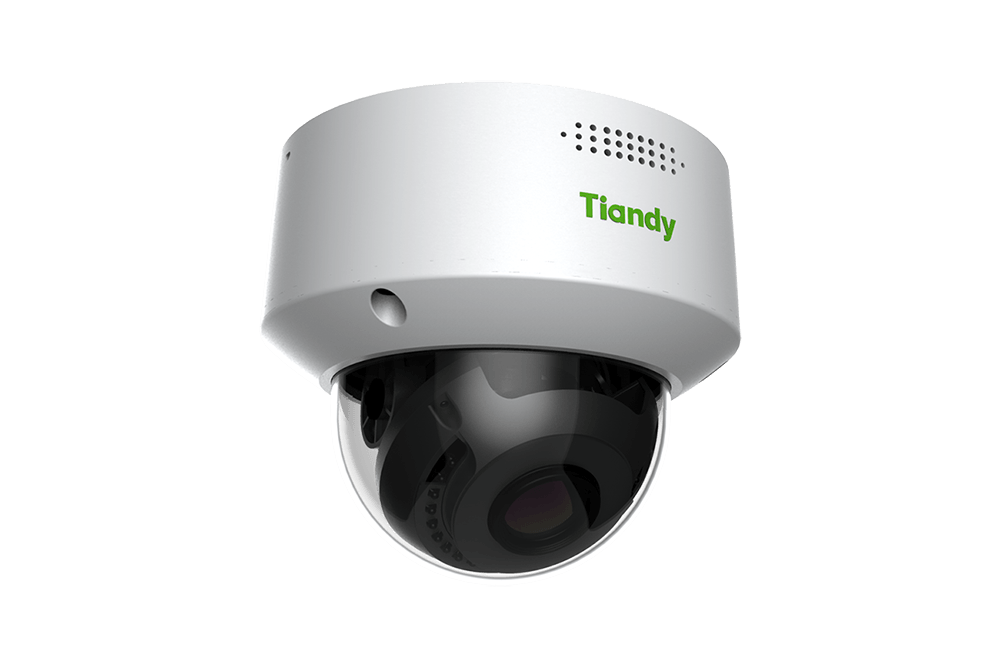

TC-C35MS
