n. Illumination
Color:0.04Lux@(F2.2,AGC ON),B/W:0Lux with IR |
Shutter Time
1s to 1/100,000s |
Day&Night
IR-cut filter with auto switch (ICR) |
WDR
DWDR |
S/N
>37dB |
Angle Adjustment
0-360°;0-80°;0-360° |
Lens |
Lens Type
Fixed |
Focal Length
4mm |
Lens Mount
M12 |
Aperture Range
F2.2,Fixed |
Field of View
76°(H);41.2°(V);87°(D) |
DORI Distance
Detect:57.1m
Observe:22.6m
Recognize:11.4m
Identify:5.7m |
Illuminator |
IR LEDs
2 |
IR Distance
3
0m |
Wavelength
850nm |
Compression Standard |
Video Compression
S+265/H.265/H.264B/H.264M/H.264H |
Video Bit Rate
32k-4Mbps |
Audio Compression
G.711A/G.711U |
Audio Sampling Rate
8kHz |
Image |
Max. Resolution
1920×1080@30fps |
Main Stream
PAL:25fps(1920×1080,1280×720,704×576,640×480)
NTSC:30fps(1920× 1080,1280× 720,704× 480,640× 480) |
Sub Stream
PAL:25fps(704×576,704×288,352×288,640×360)
NTSC:30fps(704×480,704×240,352×240,640×360) |
BLC
Yes |
HLC
Yes |
AGC
Yes |
3D DNR
Yes |
1/3″CMOS |
White Balance
Auto/Semi-auto/Manual |
OSD
1region;16*16/32*32/48*48 |
Privacy Mask
4 regions |
Defog
Yes |
Network |
Protocols
HTTP;TCP/IP;UDP;ICMP;DHCP;DNS;NTP;IPv4;Telnet;Unicast |
System Compatibility
onvif Profile S/T |
Remote Connection
1 |
Moblie Client
N
/A |
Web
IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+ |
Interface |
Communication Interface
1 RJ45 10M/ 100M self adaptive Ethernet port |
Built-In Mic
Yes |
General |
Web Client Language
English |
Operating Temperature
-30℃-60℃ |
Operating Humidity
0-95% |
Storage Temperature
-30℃-60℃ |
Storage Humidity
0-95%(non-condensing) |
Power Supply
POE 802.3af;MAX 5.5W |
Protection
Surge protection 2000V;Lightning proof 6000V;IP67 |

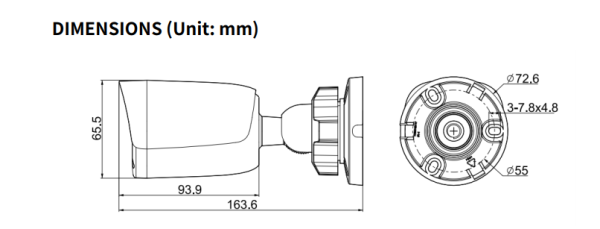

Boundary Dimensions
164(L)73(W)73(H)mm |
Package Dimensions
180(L)90(W)95(H)mm |
GrossWeight
0.3kg |
NetWeight
0.22kg |
TC-C32QN
