قیمت دوربین مداربسته اسپیددام TC-H348M تیاندی

Image Sensor 1/1.8″ CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.001lux@ (F1.6, AGC ON), B/W:0.0001lux@ (F1.6, AGC ON), 0lux with IR
Shutter Time 1s to 1/100,000s
Day & Night IR Cut Filter with Auto Switch
Optical Zoom 63X
Digital Zoom 16X
Lens
Focal Length 5.7-359mm
Zoom Speed <7s
Field of View
Horizontal filed of view: 60° (w)~1.54° (t) ,
Vertical filed of view: 35.5° (w)~0.87° (t),
Diagonal field of view:67.5°(w)~1.77(t)
Aperture Range F1.6~F5.0
Focus Control Auto/Manual
Iris Control Auto
Close Focus Distance 1 m‒3 m
Pan&Tilt
Pan Range 360°
Pan Speed Pan Manual Speed: 0.1°~200°/s, Pan Preset Speed: 240°/s
Tilt Range -21°~90° (Default -13°~90°)
Tilt Speed Tilt Manual Speed: 0.1°~180°/s, Tilt Preset Speed: 180°/s
3D Position Yes
Preset 500
Preset Accuracy ±0.1°
Cruise 16, up to 32 presets per cruise
Scan 8
Pattern 8, each with 600s memory or 1000 orders
Scheduled Task Preset、Cruise、Scan、Pattern、Alarm output
Park Action Yes
Power-off Memory Yes
Preset Freezing Yes
Illuminator
IR LEDs 11
IR Distance Up to 300m
IR Irradiation Angle Adjustable by Zoom
White LEDs 2, support white/blue/red light flash
Laser 6, Wavelength 850nm
Laser Distance Up to 500m
Compression Standard
Video Compression S+265/H.265/H.264 (High profile、Main profile、Baseline)
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate 8K～48Kbps
Max. Resolution 4MP (2560×1440)
Main Stream PAL: 25fps(2560×1440,2304×1296,1920×1080,1280×720)
NTSC: 30fps(2560×1440,2304×1296,1920×1080,1280×720)
Sub Stream PAL: 25fps(704×576,704×288,352×288,640×360)
NTSC: 30fps(704X480,704X240,352X240,640×360)
Third Stream PAL:25fps(704×576,704×288,352×288,640×480)
NTSC: 30fps(704X480,704X240,352X240,640×480)
BLC Yes
HLC Yes
WDR TWDR,,only in monitoring mode
* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at
the same time.
Image Stabilization EIS,only in monitoring mode
Fog Digita
White Balance Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance
AGC Yes
Noise Reduction 2D/3D
ROI 7 Dynamic Areas for Both Main and Sub Stream, support 1 auto-tracking ROI
Picture Overlay Yes
Privacy Mask Yes
Smart Defog Yes
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Flip Yes
OSD 16×16, 24×24,32×32, 48×48, 64×64,96×96, adaptable size, Letters such as Week, Date, Time, Total 5 Regions
Feature
Alarm Trigger Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address
Conflict, FTP Server Exception
Video Analytics Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Heatmap, Crowd,
People Counting, On Duty Detection, Safety Helmet Detection,Video Abnormal, Audio Abnormal
Early Warning(EW) Three level,Voice warning support 35 voice messages; Laser driven away; Three-light flash warning
Auto-Tracking Yes
Face Detection and Analytics
Operating Mode Face capture, intelligent monitoring optional, default intelligent monitoring
Face Detection Performance Detects up to 32 faces at the same scene
Face Exposure Brightness Default 35, 1~100 brightness optional
Min. Face Pixel Default 80, 19~2560 optional
Network
Protocols TCP/HTTPS/DHCP/DNS/DDNS/EasyDDNS/NTP/SMTP/UpnP/802.1X/QoS/IPv4/IPv6/UDP/PPPOE/SSL/SNMP/Unicast/Mult
icast
System Compatibility ONVIF (PROFILE S/T/G/M),SDK,CGI,RTSP
ANR
Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support
Tiandy ANR NVR)
Remote Connection 4
User/Host Up to 32 users. 4 user levels
Web Version web6
Interface
Communication Interface 1 RJ45 10M/100M self adaptive Ethernet port
Audio I/O 1/1
Alarm I/O 8/2
Built-In Speaker Yes
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512 GB
RS-485 Yes
BNC Yes(Debugging use)
Wiper Yes
Electronic Compass Yes
GPS/BDS N/A
General
Protection IP66 , TVS 6000V lightning protection, surge protection and voltage transient protection
Web Client Language
17 languages
Simplified Chinese / traditional Chinese / English / Spanish / Italian / Korean / Turkish / Russian / Thai / Polish / French /
Dutch / Hebrew / Vietnamese / Arabic / German / Ukrainian
Operating Conditions -40°C~70°C (IR OFF), -40°C~40°C (IR ON), 0-95%RH
Power Supply DC36V±25%/POE++(IEEE802.3 bt)
Power Consumption 37W (IR OFF), 62W (IR ON )
Heater Yes
Material ADC12

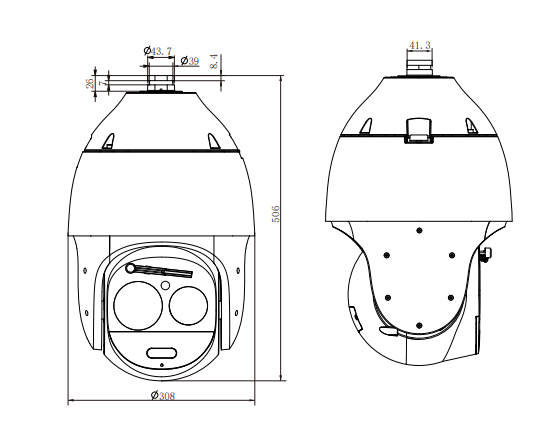

Package/Boundary Dimensions Φ445x700mm (Φ308x506mm)
Gross/Net Weight 17.95kg (12.75kg)
