Image Sensor |
1/2.8″ CMOS |
Signal System |
PAL/NTSC |
Min. Illumination |
Color: 0.02Lux@ (F1.6, AGC ON), B/W: 0Lux with IR |
Shutter Time |
1s to 1/100,000s |
Day & Night
Wide Dynamic Range
Lens |
Dual IR Cut Filter with Auto Switch
Digital WDR |
Lens Type |
Fixed |
Focus |
4mm |
Lens Mount |
M12 |
Aperture |
F1.6, Fixed |
FOV |
Horizontal field of view: 90.4° Vertical field of view: 46.8° |
Illuminator |
IR LEDs |
2 |
IR Range |
Up to 50m |
Wavelength |
850nm |
White LEDs |
2 |
Compression Standard |
Video Compression |
S+265/H.265/H.264 |
Video Bit Rate |
32Kbps~6Mbps |
Audio Compression |
G.711/G.711U |
Audio Bit Rate |
8K Hz/16K Hz |
Image |
Max. Resolution |
2304×1296 |
Main Stream |
PAL: 25fps (2304×1296, 1920×1080, 1280×720, 704×576, 640×480) |
Sub Stream |
PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
Third Stream |
N/A |
Image Setting |
Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
Image Enhancement |
3D DNR/HLC |
ROI |
N/A |
OSD |
16 16, 32 32,adaptable size, Letters Such as Week, Date, Time, Total 1 Regions |
Picture Overlay |
N/A |
Privacy Mask |
Yes, 4 regions |
Smart Defog |
Yes |
Feature |
Alarm Trigger |
IP Address Conflict |
Video Analytics |
N/A |
Early Warning(EW) |
Yes |
NTSC: 24fps (2304×1296),30fps (1920×1080, 1280×720, 704×480, 640×480) |
NTSC: 30fps (704×480, 704×240, 640×360, 352×240) |
* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at
the same time.
Network
Network Storage |
Protocols |
HTTP,TCP/IP,UDP,ICMP,DHCP,DNS,NTP,Telnet,RTSP,CGI |
System Compatibility |
ONVIF (PROFILE S/T), SDK, P2P(Mutually exclusive with Profile G) |
Remote Connection |
2 |
Client |
Easy7, EasyLive Plus |
Web Version |
Web6 |
Wi-Fi |
Wireless Standards |
IEEE802.11b/g/n |
Frequency Range |
2.4GHz ~ 2.4835 GHz |
Channel Bandwidth |
20/40MHz |
Protocols |
802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM/HT |
Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
Transfer Rates |
802.11b: 11Mbps
802.11g: 54Mbps
802.11n: up to 150Mbps |
Wireless Range |
Up to 30m (The performance varies based on actual environment) |
Power Consumption |
802.11b: 17±1.5dBm@11Mbps
802.11g: 14±1.5dBm@54Mbps
802.11n: 12.5±1.5dBm@150Mbps |
Interface |
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port |
Audio I/O Mic in |
Alarm I/O N/A |
Reset Button Yes |
On-board storage Built-in MicroSD card slot, up to 512 GB |
General
Web Client Language
2 languages
English, Turkish
Operating Conditions |
Power Supply DC 12V±25% |
Power Consumption MAX: 12W(12V) |
Protection IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017 |
Heater N/A |

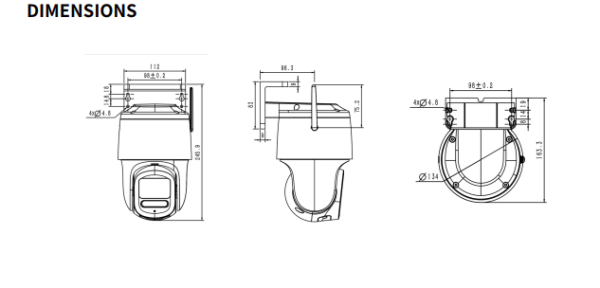

Dimensions |
Weight 1Kg |
TC-H334S
