Image Sensor
1/3″ |
Signal System
PAL/NTSC |
Min. Illumination
Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR |
Shutter Time
1s to 1/100,000s |
Day&Night
Dual IR Cut Filter with Auto Switch |
WDR
Digital WDR |
Lens |
Lens Type
Fixed |
Focal Length
2.8(4)mm |
Lens Mount
M12 |
Aperture Range
F1.6,Fixed |
Field of View
Horizontal field of view:92.8°(2.8mm); 77.6°(4mm)
Vertical field of view:52.2°(2.8mm); 44.1°(4mm)
Diagonal field of view:104.8° (2.8mm) ,89.8°(4mm) |
Illuminator |
IR LEDs
2 |
IR Distance
U
p to 30m |
Wavelength
850nm |
White LEDs
N/A |
Compression Standard |
Video Compression
S+ 265/H.265/H.264B/H.264M/H.264H |
Video Bit Rate
32kbps~6Mbps |
Audio Compression
G.711A/G.711U |
Audio Sampling Rate
8kHz |
Image |
Max. Resolution
2560×1440 |
Main Stream
PAL:20fps(2560×1440,2304×1296,1920×1080,1280×720)
NTSC:20fps(2560×1440,2304×1296,1920×1080,1280×720) |
Third Stream
N/A |
Sub Stream
PAL:20fps(704×576,704×288,352×288,640×360)
NTSC: 20fps(704×480,704×240,352×240,640×360)
Image Setting
Saturation,brightness,contrast,sharpness,adjustable by client software or web browser |
Image Enhancement
BLC/3D DNR/HLC |
ROI
N/A |
OSD
16*16/32*32/48*48/64*64,adaptable size,Letters Such as Week,Date,Time,Total 1 Regions |
Picture Overlay
N/A |
Privacy Mask
Yes,4 regions |
Defog
Yes |
Feature |
Alarm Trigger
IP Address Conflict,Motion Detection |
Video Analytics
N/A |
Network
ANR
N/A |
Protocols
HTTP,TCP/IP,UDP,ICMP,DHCP,DNS,NTP,IPv4,Telnet,RTSP |
System Compatibility
onvif Profile S/T,CGI,MILSTONE |
Remote Connection
2 |
Client
E
asy7,EasyLive Plus |
Web
IE,Firefox,Edge,Safari,Chrome |
Interface |
Communication Interface
1 RJ45 10M/ 100M self adaptive Ethernet port |
Audio I/O
N/A |
Alarm I/O
N/A |
Built-In Mic
Yes |
Built-In Speaker
N/A |
Reset Button
N/A |
On-board storage
N/A |
General |
Web Client Language
12 languages
English, Arabic, Italian, Spanish, Japanese, Vietnamese, Thai, Turkish, Russian, Polish, Portuguese,
French |
Operating Conditions
-30℃~60℃,0~95%RH |
Power Supply
POE,802.3af |
Power Consumption
≤ 5W |
·
* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at
the same time.
Protection
IP67 |
Heater
N/A |

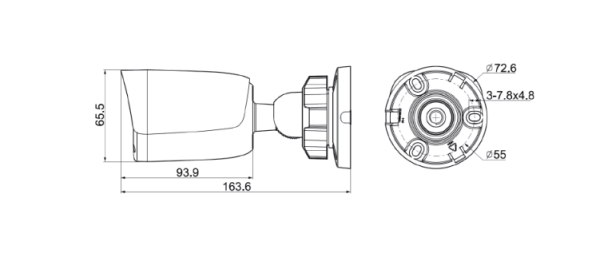

Boundary Dimensions
66mm(D)× 164mm(H) |
Package Dimensions
175(L)85(W)85(H)mm |
GrossWeight
0.3kg |
NetWeight
0.22kg |
TC-C34QN
