قیمت دوربین مداربسته اسپید دام تیاندی مدل TC-H326M

a

Image Sensor	1/1.8″ CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.0008lux@ (F1.6, AGC ON), BW: 0lux with IR
Shutter Time	1s to 1/100,000s
Day & Night	Dual IR Cut Filter with Auto Switch
Wide Dynamic Range	140dB
Optical Zoom	44×
Digital Zoom	16×

Lens

Focal Length	6mm~264mm
Zoom Speed	<5s
Angle of View	Horizontal filed of view：61.8° (w)~2.3° (t) Vertical filed of view：36.3° (w)~1.3° (t)
Aperture Range	F1.6~F5.3

Pan&Tilt

Pan Range	360°
Pan Speed	Pan Manual Speed: 0.1°~180°/s, Pan Preset Speed: 240°/s
Tilt Range	-16°~90° (Auto flip)
Tilt Speed	Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 180°/s
3D Position	Yes
Presets	500
Preset Accuracy	±0.3°
Scan	8
Cruise	16, up to 32 presets per cruise
Pattern	8, each with 600s memory or 1000 orders
Power-off Memory	Yes
RS-485 Protocols	DOME_PELCO_D， DOME_PELCO_P， DOME_PLUS

Illuminator

IR LEDs	8
IR Range	Up to 200m
IR Irradiation Angle	Adjustable by Zoom
White LEDs	2

Compression Standard

Video Compression	S+265/H.265/H.264/M-JPEG
Video Bit Rate	32Kbps~16Mbps
Audio Compression	G.711A/G.711U/ADPCM_D/AAC_LC
Audio Bit Rate	8K～ 48Kbps


Max. Resolution	2.0MP (1920×1080)
Main Stream	PAL: 50fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480)
Sub Stream	PAL: 25fps (704×576, 704×288, 640X360, 352×288)
Third Stream	PAL: 25fps (704×576, 704×288, 352×288) NTSC: 30fps (704×480, 704×240, 352×240)
Image Setting	Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement	BLC/3D DNR/HLC
ROI	7 Dynamic Areas for Both Main and Sub Stream, support auto-tracking ROI
OSD	16×16, 24×24,32×32, 48×48, 64×64, 96×96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions
Picture Overlay	Yes
Privacy Mask	Yes
Smart Defog	Yes
NTSC: 60fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480)
NTSC: 30fps (704×480, 704×240, 640X360, 352×240)

* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at
the same time.
AVAILABLE MODEL
TC-H326M SPEC:44X/IW/A
Feature

Alarm Trigger	Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception
Video Analytics
Early Warning(EW)	Yes
Auto-Tracking	Yes

Face Detection and Analytics

Operating Mode	Face capture, intelligent monitoring optional, default intelligent monitoring
Face Detection Performance	Detects up to 16 faces at the same scene
Face Exposure Brightness	Default 35, 1~100 brightness optional
Min. Face Pixel	Default 80, 19~1920 optional
Precautionary Alert	Three level

Network

Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, MULTICAST, RTMP
System Compatibility	ONVIF (PROFILE S/T/G), SDK, CGI, P2P
ANR
Remote Connection Client	7
Easy7, EasyLive
Web Version	web6

Interface
Communication Interface 1 RJ45 10M/100M self adaptive Ethernet port
Audio 1/1
Alarm 8/2
Speaker Yes
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 256 GB
RS-485 Yes
BNC Yes

Wiper	Yes
General
Firmware Version	–

Web Client Language
Operating Conditions -30°C~70°C (IR OFF), -30°C~40°C (IR ON), 0-95%RH
Power Supply AC24V±15%
Power Consumption 22W(IR OFF), 43W(IR ON)
Protection IP66
Heater N/A

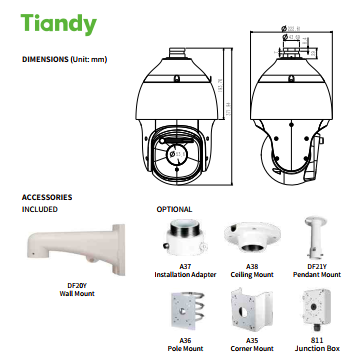

Dimensions
Weight 5.45kg(12.02lb)
