Color: 0.0008Lux@ (F1.6, AGC ON), 0Lux with LED on |
Shutter Time |
1s to 1/100,000s |
Day & Night |
Dual IR Cut Filter with Auto Switch |
Wide Dynamic Range |
120dB |
Angle Adjustment |
pan 0~340°, tilt 0~75°, roate 0~360° |
Lens
Lens Type |
Fixed |
Focus |
2.8mm |
Lens Mount |
M12 |
Aperture |
F1.6, Fixed |
FOV |
Horizontal field of view: 99.7° |
Illuminator
IR LEDs |
N/A |
IR Range |
N/A |
Wavelength |
N/A |
White LEDs/Warmlights |
2 |
Compression Standard
Video Compression |
S+265/H.265/H.264 |
Video Bit Rate |
32Kbps~6Mbps |
Audio Compression |
G.711A/G.711U/ADPCM_D |
Audio Bit Rate |
8K~48Kbps |
Max. Resolution |
1920×1080 |
Main Stream |
PAL: 25fps (1920 1080, 1280 720, 704 576, 640 480) |
NTSC: 30fps (1920 1080,1280 720, 704 480, 640 480) |
Sub Stream |
PAL: 25fps (704 576, 704 288, 640 360, 352 288) |
NTSC: 30fps (704 480, 704 240, 640 360, 352 240) |
Third Stream |
N/A |
Image Setting |
Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
Image Enhancement |
BLC/3D DNR/HLC |
ROI |
N/A |
OSD |
16 16, 32 32, 48 48, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions |
Picture Overlay |
N/A |
Privacy Mask |
Yes, 4 regions |
Smart Defog |
Yes |
Feature
Alarm Trigger |
Motion Detection, Mask Alarm, IP Address Conflict |
Video Analytics |
Tripwire, Perimeter |
Early Warning(EW) |
N/A |
* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at
the same time.
AVAILABLE MODEL

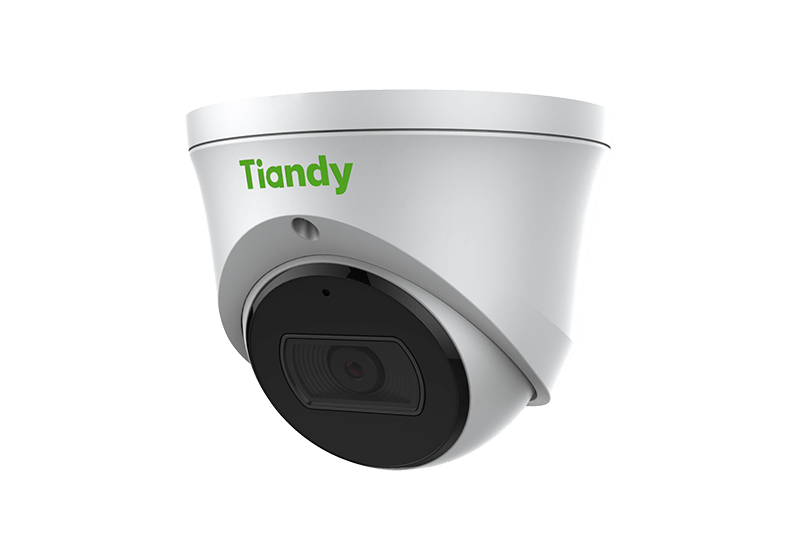

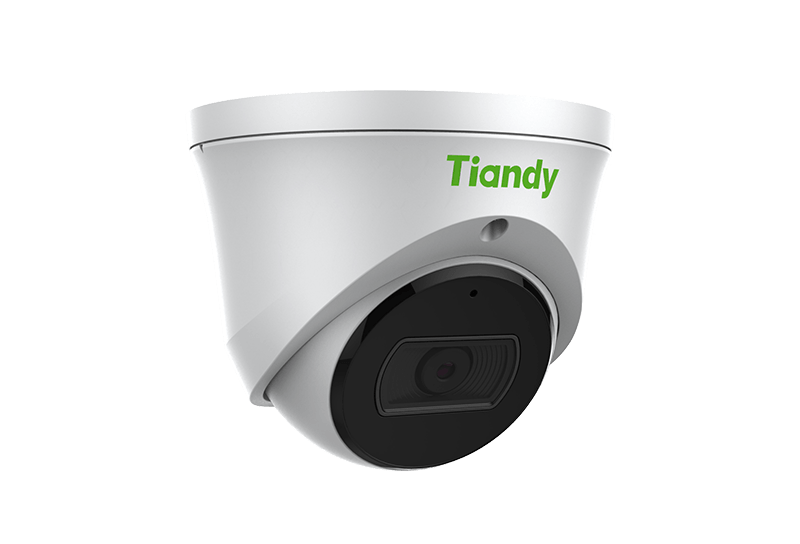

TC-C32XP SPEC: W/E/Y/2.8MM/V4.0
TC-C32XP SPEC: W/E/Y/M/2.8MM/V4.0
Network
ANR |
Protocols |
TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, IPV4, NTP, UDP, Telnet, ICMP, RTP, RTSP, UPnP |
System Compatibility |
ONVIF (PROFILE S/T/G), SDK, P2P(Mutually exclusive with Profile G) |
Remote Connection |
7 |
Client |
Easy7, EasyLive |
Web Version |
Web6 |
Interface
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O Mic in
Alarm I/O N/A
Reset Button Yes
On-board storage
General |
Built-in MicroSD card slot, up to 512 GB |
Firmware Version |
– |
Web Client Language
15 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French,
Polish, Dutch, Hebraism, Arabic, Vietnamese
Operating Conditions -40 ~ 60 , 0~ 95% RH
Power Supply DC 12V±25%, PoE (802.3af)
Power Consumption MAX: 6W (12V) MAX: 8W (PoE)
Protection IP66, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Heater N/A
Dimensions
Weight Metal+Plastic: 0.33Kg (0.73lb) Metal: 0.47Kg (1.04lb)
TC-C32XP
