| ystem |
PAL/NTSC |
| Min. Illumination |
Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR |
| Shutter Time |
1s to 1/100,000s |
| Day & Night |
Dual IR Cut Filter with Auto Switch |
| WDR |
120dB |
| Angle Adjustment |
Bracket,pan 0~360°,tilt 0~75°,roate 0~360° |
| Lens |
| Lens Type |
Motorized |
| Focus |
2.7-13.5mm |
| Lens Mount |
Φ14 |
| Aperture |
F1.6 |
| FOV |
Horizontal field of view:102.9°~31.4°； Vertical field of view:55~17.9° |
| Illuminator |
| IR LEDs |
4 |
| IR Range |
Up to 80m |
| Wavelength |
850nm |
| White LEDs/Warmlights |
N/A |
| Compression Standard |
| Video Compression |
S+265/H.265/H.264 |
| Video Bit Rate |
32Kbps~6Mbps |
| Audio Compression |
G.711A/G.711U/ADPCM_D_D |
| Audio Bit Rate |
8K,32K,48Kbps |
| Image |
| Max. Resolution |
1920×1080 |
| Main Stream |
PAL:25fps(1920×1080,1280×720,704×576,640×480) |
| NTSC:30fps(1920×1080,1280×720,704×480,640×480) |
| Sub Stream |
PAL:25fps(704×576,704×288,640×360,352×288) |
| NTSC:30fps(704×480,704×240,640×360,352×240) |
| Third Stream |
N/A |
| Image Setting |
Saturation,brightness,contrast,sharpness,adjustable by client software or web browser |
| Image Enhancement |
BLC/3D DNR/HLC |
| ROI |
Support 8 fixed regions of coding |
| OSD |
16×16,32×32,48×48,adaptable size,Letters Such as Week,Date,Time,Total 1 Regions |
| Picture Overlay |
N/A |
| Privacy Mask |
Yes,4 regions |
| Smart Defog |
Yes |
| Feature |
| Alarm Trigger |
Motion Detection,Mask Alarm,IP Address Conflict |
| Video Analytics |
Tripwire,Perimeter |
| Early Warning(EW) |
N/A |
Network
| ANR |
Yes(Only Support Tiandy ANR NVR) |
| Protocols |
HTTP,TCP/IP,UDP,UPnP,ICMP,DHCP,DNS,DDNS,Easy DDNS,NTP,IPv4,RTSP,RTMP |
| System Compatibility |
ONVIF(PROFILE S/T/G),SDK,CGI,Milestone,P2P(Mutually exclusive with Profile G) |
| Remote Connection |
2 |
| Client |
Easy7,EasyLive Plus |
| Web Version |
Web6 |
* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at
the same time.
AVAILABLE MODEL
TC-C32US SPEC: I8/A/E/Y/M/C/H/2.7-13.5MM
| Interface |
| Communication Interface |
1 RJ45 10M/ 100M self adaptive Ethernet port |
| Audio I/O |
1/1,Mic in |
| Alarm I/O |
1/1 |
| Speaker N/A |
| Reset Button |
Yes |
| On-board storage |
Built-in MicroSD card slot,up to 512 GB |
| General |
| Web Client Language |
17 languages
English,Russian,Spanish,Korean,Italian,Turkish,Simple Chinese,Traditional
Chinese,Thai,French,Polish,Dutch,Hebraism,Arabic,Vietnamese,German,Ukrainian |
| Operating Conditions |
-35℃~60℃ ,0～95% RH |
| Power Supply |
DC 12V± 25%,PoE(802.3af) |
| Power Consumption |
MAX:8W(12V) MAX:10W(PoE) |
| Protection |
IP67 |
| Heater |
N/A |

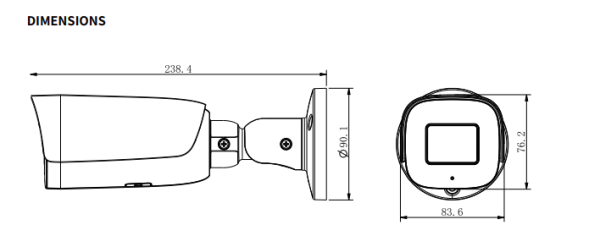

| Dimensions |
239x90x90mm(9.41×3.54×3.54inch) |
| GrossWeight |
1.26Kg(2.77lb) |
| NetWeight |
0.93Kg(2.05lb) |
TC-C32US
