Image Sensor 1/2.8″ CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.001Lux@ (F1.2, ACG ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment Bracket, pan 0~360°, tilt 0~75°, roate 0~360°
Lens Type Motorized
Focus 2.7-13.5mm
Lens Mount Φ14
Aperture F1.2~F2.2, Motorized
FOV Horizontal field of view: 94.9°~37°
IR LEDs 4
IR Range Up to 80m
Wavelength 850nm
White LEDs N/A
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Bit Rate 8K~48Kbps
Max. Resolution 3072×1728
PAL: 25fps (3072×1728, 2560×1440, 2304×1296) 50fps (1920×1080, 1280×720)
NTSC: 30fps (3072×1728, 2560×1440, 2304×1296) 60fps (1920×1080, 1280×720)
PAL: 25fps (704×576, 640×360, 704×288, 352×288)
NTSC: 30fps (704×480, 640×360, 704×240, 352×240)
Third Stream PAL: 25fps (1920×1080, 1280×720, 704×576, 704×288, 352×288)
NTSC: 30fps (1920×1080, 1280×720, 704×480, 704×240, 352×240)
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC/Corridor Format
ROI Support 7 fixed region of coding
OSD
16×16, 24×24,32×32, 48×48, 64×64, 96×96, adaptable size, Letters Such as Week, Date, Time, Total
5 Regions
Picture Overlay Yes
Privacy Mask Yes, 4 regions
Smart Defog Yes
Alarm Trigger Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address
Conflict, MAC Address Conflict, FTP Server Exception
Main Stream
Sub Stream
Feature
Camera
Lens
Illuminator
Compression Standard
* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at
the same time.
AVAILABLE MODEL

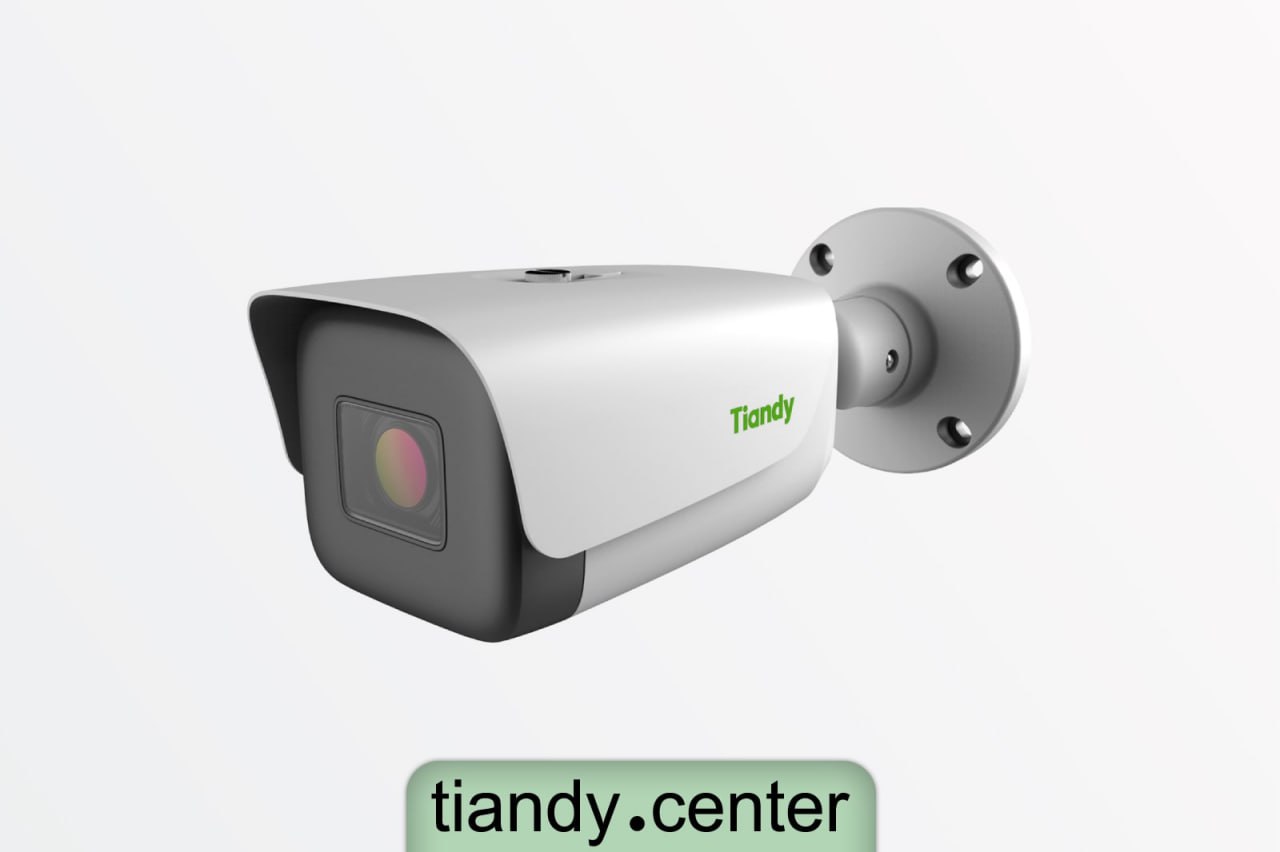

TC-C35LP SPEC: I8W/A/E/Y/M/H/2.7-13.5MM/V4.0
Video Analytics Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking,
Crowed, Video Abnormal, Audio Abnormal, Heatmap
Early Warning(EW) Yes
Intelligent Coding N/A
Intelligent Image N/A
Intelligent Alarm N/A
ANR
Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when
resumed connection (Only Support Tiandy ANR NVR)
System Compatibility ONVIF (PROFILE S/T/G/M), SDK, CGI, P2P
Remote Connection ≤7
Client Easy7, EasyLive
Web Version Web6
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio 1/1, Mic in
Alarm 2/1
Reset Button Yes
On-board storage Built-in MicroSD card slot, up to 512 GB
Firmware Version –
Web Client Language
17 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai,
French, Polish, Dutch, Hebraism, Arabic, Ukrainian, German, Vietnamese
Operating Conditions -35℃~65℃, 0~95% RH
Power Supply DC12V±20%/PoE
Power Consumption MAX: 8.5W (12V) MAX: 10W (POE)
Protection IP67
Heater N/A

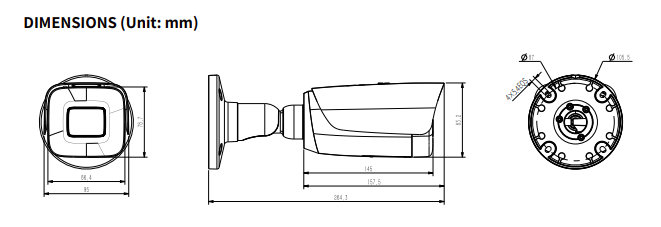

Dimensions 333×114.2×106.6mm (13.11×4.50×4.20 inch)
Weight 1.48Kg (3.26lb)
