قیمت دوربین مداربسته بولت تیاندی مدل TC-A32E2

r 1/2.8″ CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.01Lux@ (F2.0, ACG ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Lens Type Fixed
Focus 12mm
Lens Mount M12
Aperture F2.0, Fixed
FOV Horizontal field of view: 26°
IR LEDs 2
IR Range Up to 30m
Wavelength 850nm
White LEDs 2
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Bit Rate 8K~48Kbps
Max. Resolution 1920×1080
PAL: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480)
NTSC: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480)
PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Third Stream 4CIF
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC/Corridor Format
ROI Support 7 fixed region of coding
OSD
16×16, 24×24,32×32, 48×48, 64×64, adaptable size, Letters Such as Week, Date, Time, Total 5
Regions
Picture Overlay Yes
Privace Mask Yes
Smart Defog Yes
Alarm Trigger Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address
Conflict, MAC Address Conflict, FTP Server Exception
Video Analytics Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking,
On Duty Detection, Video Abnormal, Audio Abnormal
Early Warning(EW) N/A
Intelligent Coding N/A
Intelligent Image N/A
Intelligent Alarm N/A
Operating Mode Face capture, intelligent monitoring optional, default face capture
Face Detection Performance Detects up to 32 faces at the same scene
Face Exposure Brightness Default 35, 1-100 brightness optional
Min. Face Pixel Default 80, 19-1920 optional
Camera
Lens
Illuminator
Compression Standard
Main Stream
Sub Stream
Feature
Face Detection and Analytics
* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at
the same time.
AVAILABLE MODEL
TC-A32E2 SPEC: 2/E/12MM
Face Recognition N/A
Face Library N/A
Face Pictures N/A
Face Library Management N/A
Face Recognition Alert N/A
Precautionary Alert N/A
ANR N/A
System Compatibility ONVIF (PROFILE S), SDK, CGI, P2P
Remote Connection ≤7
Client Easy7, EasyLive
Web Version Web6
Communication Interface 1 RJ45 10M/100M self adaptive Ethernet port
Audio 1/1
Alarm 2/1
Reset Button N/A
On-board storage N/A
Firmware Version NVSS_V20.0.1.20190104_SP3
Web Client Language English, Simple Chinese
Operating Conditions -35℃～65℃, 0～95% RH
Power Supply DC12V±20%/PoE
Power Consumption MAX: 6W(12V) MAX: 7W(POE)
Protection IP67
Heater N/A

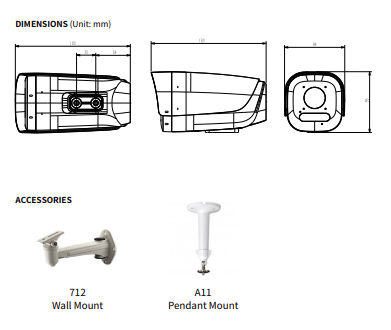

Dimensions 180x94x95 mm (7.09*3.7*3.74 inch)
Weight 0.65kg (1.43lb)
