| Video Input 4-ch |
| Max Resolution 5MP |
| Two-way Audio Input N/A |
| Bandwidth Income 60Mbps; Outgoing 40Mbps |
| Output |
HDMI/VGA Output
HDMI 1-ch, 1920×1080, 1440×900，1366×768，1280×800，1280×720，1024×768 |
| Screen Split 1/3/4 |
| Audio Output N/A |
| Decoding |
| Decoding Format S+265/H.265/H.264 |
| Recording Resolution 5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview Capability 5MP*1； 4MP*1；3MP*1；1080P*2； 720*4 |
| SATA 1 SATA interface for 1 HDD |
Capacity
Up to 6TB for each HDD |
eSAT
A Interface N/A |
| Array Type N/A |
| External Interface |
| Network Interface 1 RJ45 self-adaptive 10/100 Mbps network interface |
| USB Interface 2 USB 2.0 |
| Serial Interface N/A |
| Alarm In/Out N/A |
| Network |
| Protocol P2P, IPv4, IPv6, DHCP, DDNS, NTP, HTTP, SMTP, UPnP(Port Mapping), TCP, UDP, RTSP |
| System Compatibility Onvif (PROFILE S/T), SDK, P2P |
| POE |
| POE Interface 4 RJ45 self-adaptive 10/100 Mbps network interface |
| Power POE Port The maximum output power per port is 28W， total output power is 28W |
| General |
| Web |
| Language English,Russian, Portuguese, French, Spanish, Dutch, Italian, German |
| Operating Conditions -10 ～ 55 , 10%~90% RH |
| Power Supply DC48V，1A |
| Consumption (without HDD) <10W (HDD not included, idling) |
| Chassis 1U |

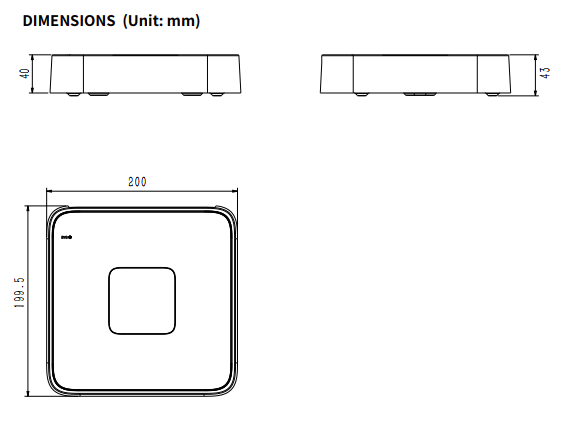

Dimensions
42.9×200×199.5mm, (1.69×7.87×7.85 inch) |
Weight (without HDD)
0.4Kg (0.88lb) |
دانلود دیتاشیت دوربین تیاندی مدل TC-R3104-AK
